Starting to Think about a Race Car Sized Rear Sway Bar

[WannabeST]

Not sure I understand your question?

Wouldn't a solution to wanting more rotation be to add the piece bar, the orange swave and summit, with a swaybar.
Wouldn't the combination of the 3 yield good rotation?



[Fusion Works]

Oh, gotcha. Personally I don't like the add in bars within the beam because of the way they mount with one little bolt on each side. Why not just get the rotation I want out of a single bar? Less stuff to tote around, less stuff to wear and trouble to track down if there is an issue, etc. A single bar is fairly easy to make and it just bolts on like my current Eibach bar.



[D1JL]

On my FiST, I had the Eibach rear bar as well as the Pierce in Twist-Beam bar.
The Pierce bar is a rendition of the Steeda bar designed for the non-ST however no side bolt drilling is required.
If I was to do it over again, I would use only the DNA bar as shown above.
The DNA bar is adjustable so your exact requirements can be set.



[WannabeST]

Oh, gotcha. Personally I don't like the add in bars within the beam because of the way they mount with one little bolt on each side. Why not just get the rotation I want out of a single bar? Less stuff to tote around, less stuff to wear and trouble to track down if there is an issue, etc. A single bar is fairly easy to make and it just bolts on like my current Eibach bar.

that's a fair point. I like making my cars as simple as possible too



[Fusion Works]

On my FiST, I had the Eibach rear bar as well as the Pierce in Twist-Beam bar.
The Pierce bar is a rendition of the Steeda bar designed for the non-ST however no side bolt drilling is required.
If I was to do it over again, I would use only the DNA bar as shown above.
The DNA bar is adjustable so your exact requirements can be set.

I kinda like the DNA race spec bar, but am not super thrilled anchoring the bar to the beam like they do. I am afraid I haven't spent enough time studying the kinematics of the twist beam. Picked up a couple of white papers, but life has gotten in the way of reading them. I like the ability to remove the preload at ride height though.

The VWs use to use a clamp on rear bar, which would be an option. They used something like .250in flat bar and bent it into a hook for one side and used a pinch clamp on the other side of the bar. It seemed to work well. To me looks stronger than the one dinky bolt the DNA bar has.



[Fusion Works]

Here is a video from the guy who had Misha drive his Fiesta around the ring.

View: https://www.youtube.com/watch?v=YCUWR0H218Q


Not a fan of the way the bar bolts on with one bolt.



[M-Sport fan]

Can concur, ride is pretty terrible. LOL. My own fault, haven't pulled the 450/550 setup off and its pretty brutal on some elevated road way type bumps. Its ok on smooth roads, but it will bounce you pretty hard. HAHA. When I get the Radical out of the way I will pull it in the shop and experiment with pulling the Eibach rear bar, just to test your theory. (Plus I need it for a template)

Do you own/race the Radical, or is it a customer's ride?



[Dialcaliper]

Here is a video from the guy who had Misha drive his Fiesta around the ring.

View: https://www.youtube.com/watch?v=YCUWR0H218Q


Not a fan of the way the bar bolts on with one bolt.

Bolting scheme isn't that well thought out. Also amused, because the "silent blocks" use a polymer spherical bearing that I recognize, which are meant to be run dry, and the rotating surface is the outer ball. Then watching the guy grease the inner surface...



[Fusion Works]

Customer ride.



[Fusion Works]

After four or five full iterations I think I have a good design ready to bend. The new one will be 25.4mm. Should be about twice as stiff as the Eibach 21mm bar I am currently running.



[Fusion Works]

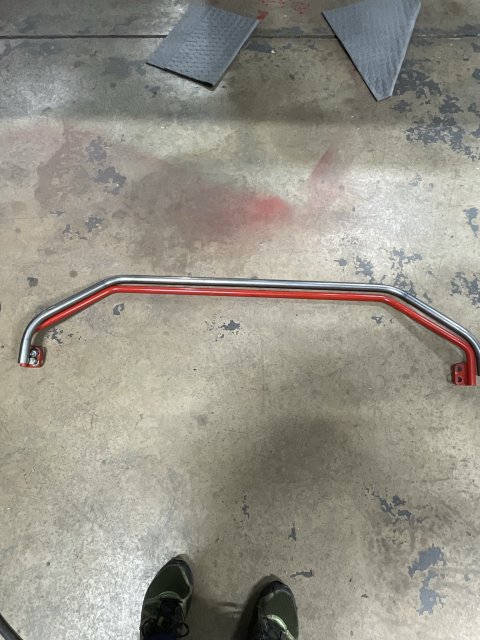

Cross post, got the real deal bent up and mocked up on the car. Now on to making the mounting points on the bar.



[Fish Freak]

That's persistence Brett! Lookin' good, weld-er UP !

Just out of curiosity, did you consider making this sway bar out of hollow 4130 chromoly and slightly larger diameter to save a few lbs of weight?



[Fusion Works]

Yeah if I needed more bar I thought about building one out of something like 1.25 tube. I have used that in the past for the sway bars on my Integra. Have .095 and .125 wall 4130 bars.

I ran the bar today at Barber. Car was better. More later and I even have videos. HAHA
