Flowmaster American Thunder exhaust vid

[James1980]

I know my muffler and the resonator are black. I cant remember if there was over spray like yours but I would say that looks about right. I believe the system has stainless pipes and non stainless mufflers. So they paint them to prevent rust. Looks like the welds were painted to keep them from corroding too.

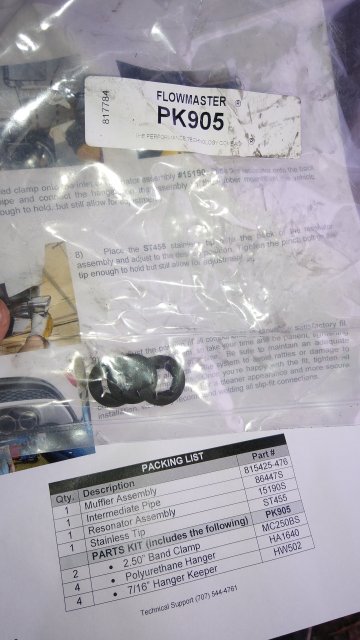

You should have gotten a bunch of stickers, paperwork and urethane hangers. If you didn't get those then I would worry



[Brianmc27]

I got all those, too. I’m sure it’s legit, it just looks different than the stock photos with that overspray.



[James1980]

I'm sure its fine then. Looks like the painter was just a little careless



[Clint Beastwood]

View attachment 26632
To those that have purchased this system, did yours have this weird overspray situation on the mid muffler?

Just wanna make sure I’d didn’t end up with some knockoff garbage.

Thanks!

its probably just to protect the welds - where they weld the resonator to the aluminized pipe would be rust-prone, the spray is probably to inhibit rust



[Brianmc27]

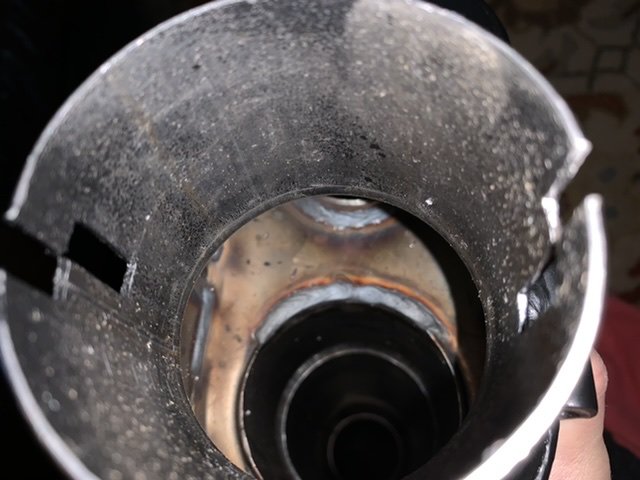

Just for science - this thing is damn near a straight through design. I apologize in advance to my neighbors.



[Business6]

Just looks like some anti-corrosion spray but beats me



[Crystals]

Just for science - this thing is damn near a straight through design. I apologize in advance to my neighbors.
View attachment 26646 View attachment 26647

At worst, your neighbors will just be able to hear you more than before. It's not an overbearingly loud exhaust by any means. Sounds great, though.



[Ford ST]

These cars are not loud not at all. A school bus makes much more nosie so don't worry about it.

Sent from my LG-LS997 using Tapatalk



[OrangeOregonFiST]

Just thought I'd update everyone on the exhaust. I'm happy with the tone and loudness but it's not the best fitting exhaust. In fact it's terrible. I've spent hours and hours adjusting it and it's either hitting the bumper, the rear axle or the cross member plate. I'm spending another day trying to get this to work. It's as if the got a couple bends in the system wrong.



[OrangeOregonFiST]

View attachment 26632
To those that have purchased this system, did yours have this weird overspray situation on the mid muffler?

Just wanna make sure I’d didn’t end up with some knockoff garbage.

Thanks!

Yes, same exact stuff on mine. After a few hundred miles it has turned into some weird powdery carbon like stuff. You'll get it all over your hands if you touch it.



[Ford ST]

The exhaust systems touching the brace is a fairly common problem with these cars. There's barely any room there's an aftermarket brace by Pierce I have one it will give you more room.
The thermal exhaust system comes with a brace.

Sent from my LG-LS997 using Tapatalk



[OrangeOregonFiST]

The exhaust systems touching the brace is a fairly common problem with these cars. There's barely any room there's an aftermarket brace by Pierce I have one it will give you more room.
The thermal exhaust system comes with a brace.

Sent from my LG-LS997 using Tapatalk

It makes so much noise now. At least it's not ruining the paint on my bumper anymore. I'm thinking about cutting the brace to make room.



[OrangeOregonFiST]

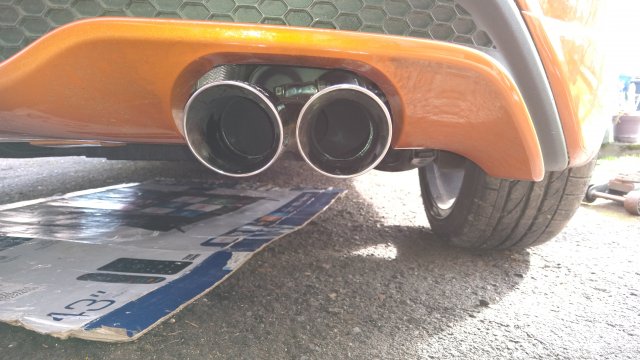

This is as good as it gets for me. I'll probably be modifying that plate in the middle.



[Brianmc27]

This is as good as it gets for me. I'll probably be modifying that plate in the middle.

I’ll see if I can get a good photo of what mine looks like. So far I haven’t noticed anything out of sorts, but it’s only been a few days.



[OrangeOregonFiST]

I just realized these are the hanger keepers... These might help...



[OrangeOregonFiST]

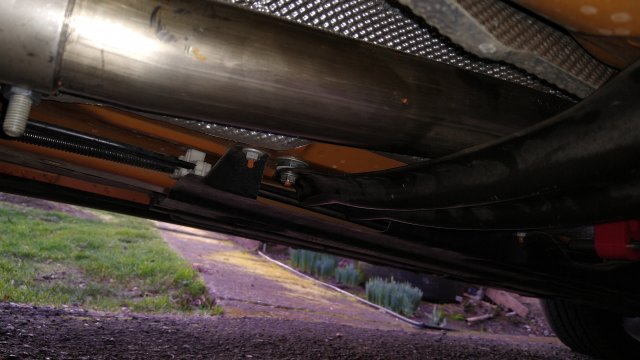

Ok, so, they gave us long studs for the center body brace. So I got four fender washers, four regular sized washers, and four M8 x 1.25 nuts. I used those as spacers to drop that brace down. You can see how I stacker them in the picture, fender washer, M8 nut, then another washer, brace, then factory nuts. I then readjusted the exhaust once more and put the hanger keepers that I forgot on and it's fitting much better. I'm still concerned about the axle hitting the exhaust and sending it into the bumper...
