  1. NOTE: Make sure that the cylinder head is at ambient air temperature before removing the cylinder head bolts.


  1. 1600541932965.png


  1. Support the cylinder head on a bench with the head gasket side up. Check the cylinder head distortion and the cylinder block distortion.
    Refer to: Cylinder Head Distortion (303-00 Engine System - General Information, General Procedures).
    Refer to: Cylinder Block Distortion (303-00 Engine System - General Information, General Procedures).

Installation

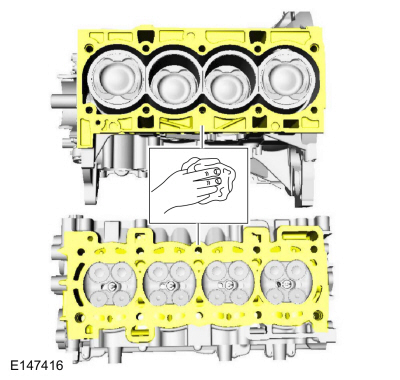

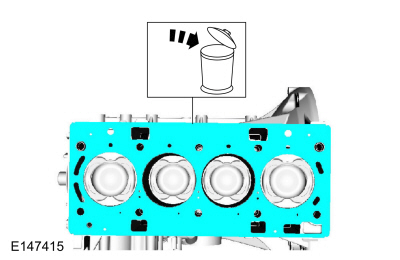

  1. NOTICE: Do not use metal scrapers, wire brushes, power abrasive discs or other abrasive means to clean the sealing surfaces. These tools cause scratches and gouges that make leak paths. Use a plastic scraping tool to remove all traces of the head gasket.

    NOTE: If there is no residual gasket material present, metal surface prep can be used to clean and prepare the surfaces.

    NOTE:
    Material : Motorcraft® Metal Surface Prep / ZC-31-A

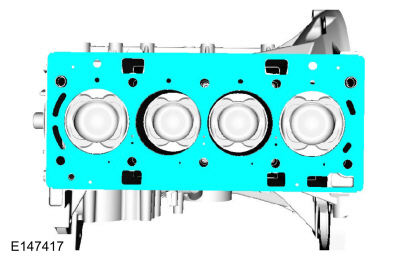

  1. 1600541882521.png


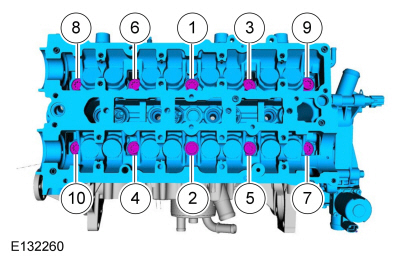

  1. NOTE: Make sure that new bolts are installed.

    NOTE: Make sure that no fluids are present in the cylinder head bolt threaded bores.
    Torque :
    Stage 1: 5 Nm
    Stage 2: 15 Nm
    Stage 3: 35 Nm
    Stage 4: 90°
    Stage 5: Tighten an additional 90°



OP
O

oohqjokerzoo

Member
Thread Starter #3
Messages
24
Likes
1
Location
London, UK
Thread Starter #3
SteveS said:
  1. NOTE: Make sure that the cylinder head is at ambient air temperature before removing the cylinder head bolts.


  1. View attachment 34486


  1. Support the cylinder head on a bench with the head gasket side up. Check the cylinder head distortion and the cylinder block distortion.
    Refer to: Cylinder Head Distortion (303-00 Engine System - General Information, General Procedures).
    Refer to: Cylinder Block Distortion (303-00 Engine System - General Information, General Procedures).

Installation


  1. NOTICE: Do not use metal scrapers, wire brushes, power abrasive discs or other abrasive means to clean the sealing surfaces. These tools cause scratches and gouges that make leak paths. Use a plastic scraping tool to remove all traces of the head gasket.

    NOTE: If there is no residual gasket material present, metal surface prep can be used to clean and prepare the surfaces.

    NOTE:
    Material : Motorcraft® Metal Surface Prep / ZC-31-A

View attachment 34485
  1. View attachment 34484


  1. NOTE: Make sure that new bolts are installed.

    NOTE: Make sure that no fluids are present in the cylinder head bolt threaded bores.
    Torque :
    Stage 1: 5 Nm
    Stage 2: 15 Nm
    Stage 3: 35 Nm
    Stage 4: 90°
    Stage 5: Tighten an additional 90°
View attachment 34483
Click to expand...

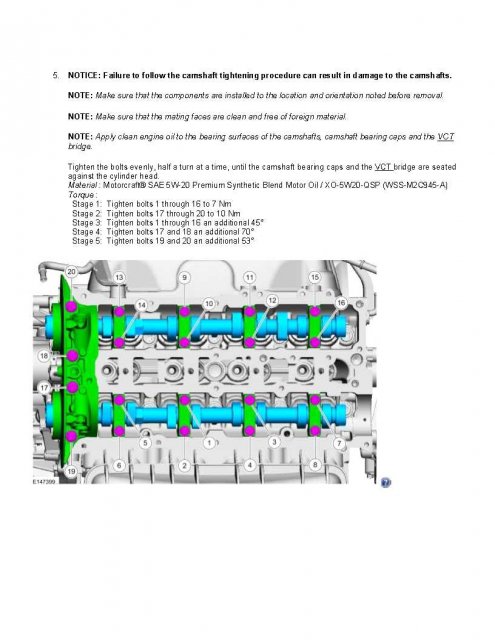

thank you do you have to ones for the cams ?????
